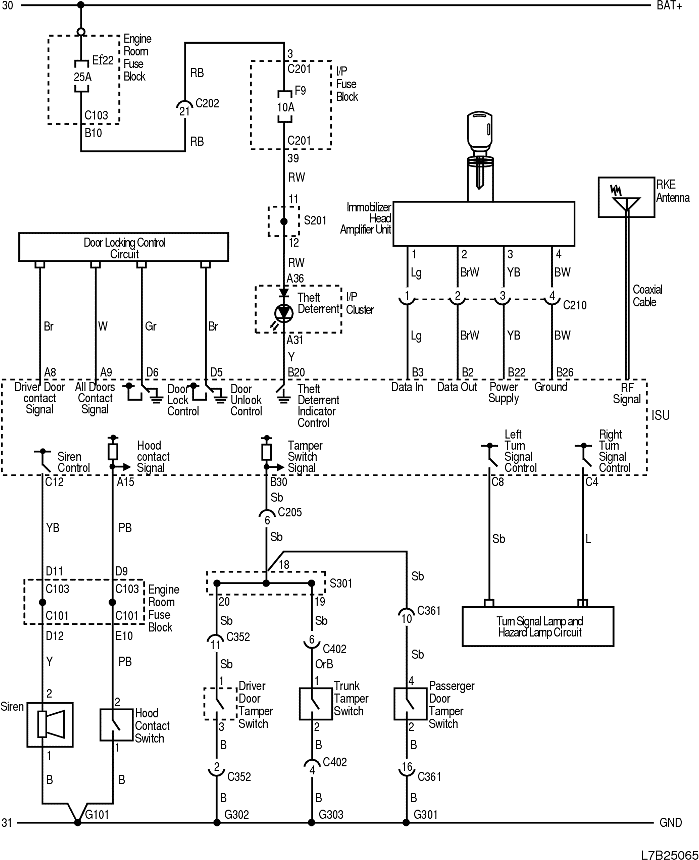

| C101 (68 Pin, Black) |
Front - Engine room fuse block |
Engine room fuse block |
| C103 (68 Pin, White) |
Body - Engine room fuse block |
Engine room fuse block |
| C201 (76 Pin, Black) |
IP - I/P fuse block |
I/P fuse block |
| C202 (23 Pin, White) |
IP - Body |
Connector box at the bottom of right A pillar |
| C205 (23 Pin, White) |
IP - Body |
Connector box at the bottom of right A pillar |
| C352 (18 Pin, White) |
Body - Driver Door |
At the bottom of driver A pillar |
| C361 (18 Pin, Gray) |
Body - Passenger Door |
At the bottom of passenger A pillar |
| C402 (6 Pin, White) |
Trunk Lid - Body |
On the left side panel in trunk room |
| G101 |
Front |
Behind left head lamp |
| G301 |
Body |
On the left crossmember of front floor panel |
| G302 |
Body |
Near back shelf of left C pillar |
| G303 |
Body |
Near back shelf of left C pillar |
