Epica |
||||||||
|
|
|||||||
| № РАЗЪЁМА (№ И ЦВЕТ КОНТАКТА) |
СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ | ПОЛОЖЕНИЕ РАЗЪЁМА |

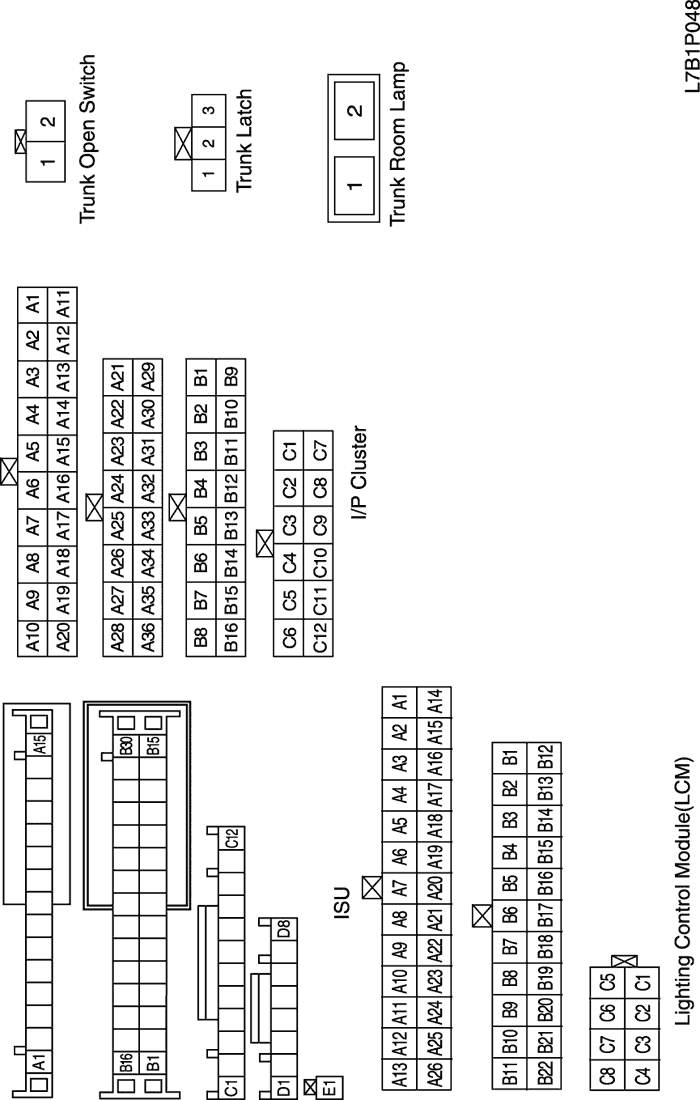

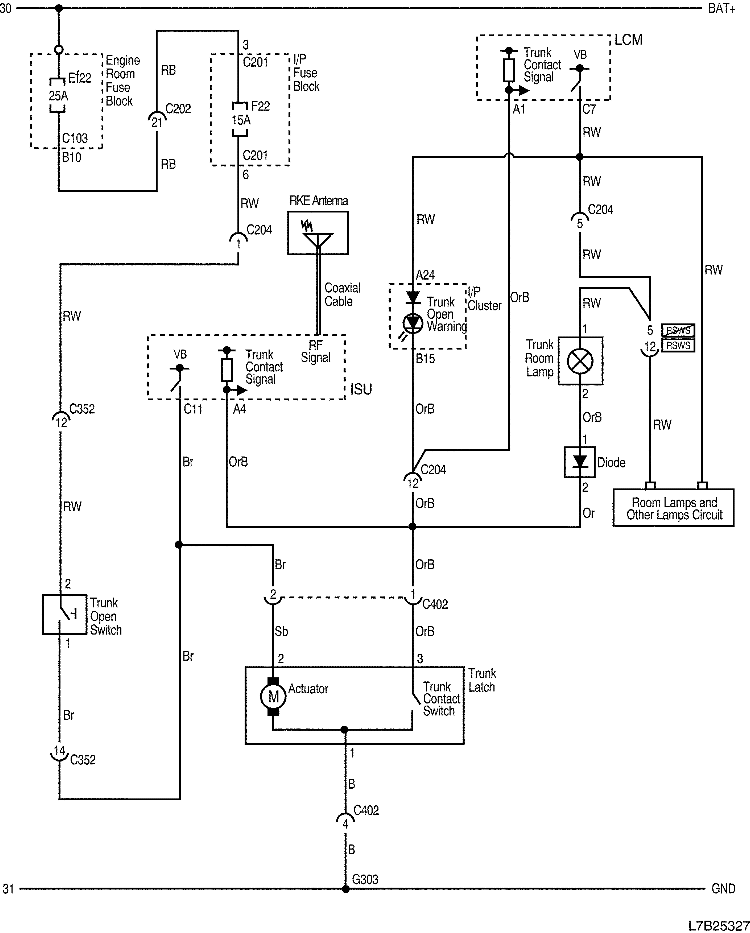

| C103 (68 Pin, White) | Body - Engine room fuse block | Engine room fuse block |
| C201 (76 Pin, Black) | IP - I/P fuse block | I/P fuse block |
| C202 (23 Pin, White) | IP - Body | Connector box at the bottom of right A pillar |
| C204 (22 Pin, White) | IP - Body | Connector box at the bottom of right A pillar |
| C352 (18 Pin, White) | Body - Driver Door | At the bottom of driver A pillar |
| C402 (6 Pin, White) | Trunk Lid - Body | On the left side panel in trunk room |
| G303 | Body | Near back shelf of left C pillar |
 |
 |
